Custom conveyors

Conveyors

Custom conveyors

built to meet your

requirements

Speedway uses a modular design that allows us to make any length of conveyor in varying widths in 3″ segments (ie 3″, 6″, 9″, 12″ etc). We can further customize our designs to incorporate curves, inclines and flights.

Overview

Broadly speaking, our conveyors are divided into two categories, modular plastic belts and endless belt conveyors. Each has its own advantages.

Modular belt conveyors always run true and alignment is not a consideration. They are very durable and individual belt tiles can be replaced if damaged. This style belt is also very easy to remove for  cleaning or replacement. There are numerous styles of chain with varying friction, openness (in the case where you want the belt to drain), flights for conveying products on inclines and belt that can travel along a radius.

Endless conveyor belts are often used for small packages/containers where you need a very smooth running conveyor and high friction. The conveyor belts typically do need to be tracked properly and can be more challenging to remove.

We have also made conveyors from a cogged needless belt. This is basically an endless belt that is driven by cogs (similar to a plastic modular belt) because it has a drive teeth molded into the belt. This belt is ideal when building a flighted incline conveyor.

Features

  • All our conveyors are constructed from stainless steel and anodized aluminuim
  • We build conveyors to suit your requirements and are not married to specific type or supplier of conveyor belt chain
  • Straight standard conveyors are typically built from parts that we hold in stock for quick turnarounds
  • Our designs are scalable, allowing us to shorten or extend our conveyors in the future if required
  • We can easily alter our wear strip materials to address things like high temperatures or high point loads
  • Our standard conveyor bolt patterns allows us to have stock mounting plates for inkjet printers, pneumatic gates and labelers.

Specifications

Voltage/Power                                  110V 1 PH 60 Hz (typical) or 208/480 V 3PH 60Hz

Controls                                             Variable Frequency Drive

Max. Width                                         As required

Max Height                                         As Required

Speed                                                 60 ft/min (standard).  Otherwise as required



Materials                                            Stainless steel and anodized aluminum.  Belt material as required.



Dimensions (Approx)                       As Required

Optional

Endless Belt

Cogged endless belt

Flighted Belt

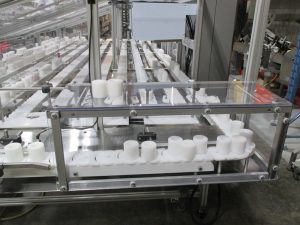

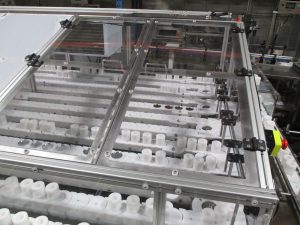

Recirculating Conveyor (see video)

Corner conveyor

Overhead conveyor

Conveyor integrated Pack-off tables

Download Specification Sheet
Back to Equipment Page

Automatic Overflow Filler (LF90CA-C/PD)

Fillers, Overflow Filler

Automatic Overflow Filler (LF90CA-C/PD)

This is an economical automatic fill-to-level machine that can easily be expanded as your business grows. This fill to level machine ensures the level in each bottle is the same regardless of variations in bottle volume.

Overview

The LF90CA is a proven workhorse with hundreds in service today. Containers are automatically transferred on a conveyor in and out of the machine. Bottle positioning and cycling of the machine is controlled by a PLC receiving bottle counts from sensors. As long as bottles are in place and product is in the tank, this machine will continue to fill bottles automatically.

Nozzles are easily spaced out when dealing with different diameter bottles or can even be swapped if bottle openings have large variations. The machine has an option of either a centrifugal pump (ideal for non-viscose liquids) or  a positive displacement pump (high viscose liquids). These inline fillers can be customized to suit any size container or conveyor length. Container sizes from 100 ml to 10 L can be accommodated.

Features

  • LF90CA-C comes complete with a sanitary centrifugal pump.
  • LF90CA-PD comes complete with a sanitary positive displacement pump.
  • The pump draws from the built-in tank sending liquid to the manifold and from there to the nozzles.
  • Easy and fast adjustment for accurate fills.
  • Can be adapted to different applications, allowing smooth production runs and easy changeovers for high efficiency.
  • Built in stainless steel holding tank with level control.
  • Overflow goes directly back into the holding tank.
  • 316 stainless steel nozzles with Teflon seals and Viton o-rings.
  • PVC nozzles and tanks are available for filling acids
  • The hoses connect to a rigid top body preventing hose strain from effecting nozzle performance
  • Easy to integrate into a production line or in stand-alone operation.
  • It is excellent machine in terms of value, flexibility and performance.
  • The machine is self contained needing only AC power, compressed air and to be connected to the main liquid supply.

Specifications

Voltage/Power                                110/208 V 1 PH 60 Hz or 208/480 V 3PH 60Hz

Air Consumption                            2-3 cfm

Controls                                          Panasonic PLC and touch screen

Max. Bottle Height                          As required

Nozzles                                            Stainless steel or PVC (3/8” up to 1 1/4”)

Number of Nozzles                         1 to16 nozzles

Accuracy                                         +/- 1/32″ fill height

Materials                                          Stainless steel and anodized aluminum (PVC when required)

Dimensions (Approx)                     L x W x H (115” x 42” x 75”)



Optional

PVC contact parts for extreme pH products

Drip tray

Neck Guide

Larger Panel box for future upgrade

Oversize tank

Download Specification Sheet
Back to Fillers Page

Semi-Automatic Overflow Filler (LF90ST-C / PD)

Fillers, Overflow Filler

Semi-Automatic Overflow Filler (LF90ST-C / PD)

This is an economical entry level machine that can be expanded and upgraded to an automatic machine as your business grows. This fill to level machine ensures the level in each bottle is the same regardless of variations in bottle volume.

Overview

The LF90ST is a proven workhorse with hundreds in service today. Containers are shuttled along a slide table and indexed via a manual stop. The operator presses a start button and the filling cycle begins. Once the filling cycle has been completed the nozzle bar lifts and waits until the operator presses the button once again.

Nozzles are easily spaced out when dealing with different diameter bottles or can even be swapped if bottle openings have large variations. The machine has an option of either a centrifugal pump (ideal for non-viscose liquids) or  a positive displacement pump (high viscose liquids). These inline fillers can be customized to suit any size container or conveyor length. Container sizes from 100 ml to 10 L can be accommodated.

Features

  • LF90ST-C comes complete with a sanitary centrifugal pump.
  • LF90ST-PD comes complete with a sanitary positive displacement pump.
  • Pump draws from the built-in tank sending liquid to the manifold and from there to the nozzles.
  • Easy and fast adjustment for accurate fills.
  • Can be adapted to different applications, allowing smooth production runs and easy changeovers for high efficiency.
  • Built in stainless steel holding tank with level control.
  • Overflow goes directly back into the holding tank.
  • 316 stainless steel nozzles with Teflon seals and Viton o-rings.
  • The hoses connect to a rigid top body preventing hose strain from effecting nozzle performance
  • Easy to integrate into a production line or in stand-alone operation.
  • It is excellent entry level machine in terms of value and performance.
  • The machine is self contained needing only AC power, compressed air and to be connected to the main liquid supply.

Specifications

Voltage/Power                                110 V 1 PH 60 Hz or 208/480 V 3PH 60Hz

Air Consumption                            2-3 cfm

Controls                                          Panasonic PLC and touch screen

Max. Bottle Height                          As required

Nozzles                                            Stainless steel or PVC     3/8” up to 1 1/4”



Number of Nozzles                         1 to16 nozzles

Accuracy                                          +/- 1/32″ fill height

Materials                                           Stainless steel and anodized aluminum

Dimensions (Approx)                        L x W x H (115” x 42” x 75”)



Optional

PVC contact parts for extreme pH products

Drip tray

Neck Guide

Larger Panel box for future upgrade

Oversize tank

Download Specification Sheet
Back to Fillers Page

Semi-automatic Tabletop Capper with Grippers (CT90-G)

Cannabis, Cappers

Semi-automatic Tabletop Capper with Grippers
(CT90-G)

The Speedway CT90-G semi-automatic cap tightener is a unique machine that handles small glass, plastic or metal containers that pose a pinch risk when manually tightening on a conventional machine. Like the CT90, this machine provides reliably and accurately cap tightening and will accommodate any continuous thread cap (including child proof). The adjustable gripper pads holds the bottle in place while the operator has both hands on opposing switches ensuring foolproof safe operation. The grippers can be designed to secure and center round, square and odd shaped bottles. A multi-disc slip clutch provides reliable torque. The CT90-G is air operated and bottle sensing is provided for ease of operation. Change over from one container to another can be accomplished in minutes.  Cycle speeds of 20 containers per minute can be achieved.

Features

  • Foolproof safe operation for short containers that would otherwise present a pinch risk
  • Custom pneumatic bottle gripper.
  • Simple design and rugged construction will deliver years of reliable service.
  • Simple operation.
  • Easy and fast adjustment for bottle changeovers.
  • Can be adapted for a wide variety of bottles allowing smooth production runs and no hassles for high efficiency.
  • Air operated—no need for electricity.
  • Its small footprint contributes to its versatility.
  • Adjustable down force.
  • Variety of chucks and liners available.
  • The CT90-G can be used as a stand alone or integrated into a semi-automatic machine with a conveyor for a faster automated line.  Ask for information on a CT-90 CA.

Specifications

Air Consumption             2.0 c.f.m. at  90 p.s.i.

Cap type                           Continuous thread  ( All types including child proof)

Cap Size                           Up to 3” in diameter

Container Size                 Up to 3” in diameter,   Up to 8” high

Chuck Size                      1/2” – 3” in diameter

Shipping Weight             48 lbs.

Download Specification Sheet
Back to Cappers Page

Semi-automatic Tabletop Capper (CT90)

Cappers

Semi-automatic Tabletop Capper (CT90)

The Speedway  CT90 semi-automatic cap tightener is a unique machine that handles glass, plastic or metal containers to reliably and accurately tighten caps for manual applications. It will accommodate any continuous thread cap (including child proof). The universal bottle guide accurately centers round, square, rectangular, and many odd shaped containers. A multi-disc slip clutch provides reliable torque. The CT90 is air operated and bottle sensing is provided for ease of operation. Change over from one container to another can be accomplished in minutes.  Cycle speeds of 30 containers per minute can be achieved.

Features

  • Simple design and rugged construction will deliver years of reliable service.
  • Simple operation.
  • Easy and fast adjustment for bottle changeovers.
  • Can be adapted for a wide variety of bottles allowing smooth production runs and no hassles for high efficiency.
  • Air operated—no need for electricity.
  • Its aesthetic outline and small footprint contributes to its versatility.
  • Adjustable down force.
  • Variety of chucks and liners available.
  • The CT90 can be used as a stand alone or integrated into a semi-automatic machine with a conveyor for a faster automated line.  Ask for information on a CT-90 CA.
  • The CT90  is the best machine in terms of cost and performance.

Specifications

Air Consumption           1.5 c.f.m. at  90 p.s.i.

Cap type                          Continuous thread   (All types including child proof)

Cap Size                          Up to 5” in diameter

Container Size                Up to 6” in diameter,  Up to 13” high

Chuck Size                      1/2” – 5 1/2” in diameter

Optional                           Sliding base plate for large bottles

Shipping Weight             48 lbs.

Download Specification Sheet
Back to Cappers Page

Turntables

Turntables

Turntables (36”, 48” or 60”)

Speedway 36”, 48” or 60” turntables can be used for in-feed or accumulating your product. These turntables are constructed from stainless steel and provide a sturdy corrosion resistant product at a reasonable price. Turntables come with quality guide rails, AC variable speed drive and stainless steel threaded leveling feet which allows for a height adjustment of 34.5” minimum to 37” maximum. The open frame allows for easy cleaning. Conveyor systems to complement your turntable are available. Casters are optional.

Download Specification Sheet
Back to Turntables Page

Precision Piston Filling Machine (PF20-CA)

Fillers

Precision Piston Filling Machine (PF20-CA)

This fast and accurate filler is ideal for viscose liquids as well as filling into open containers. The design allows for sub-surface fills.

Overview

The PF20-CA is an extremely versatile liquid filler that can easily handle both thin and very viscose liquids. The design allows for bottom-up, subsurface fills. Accuracies of +/- 0.5 % are typical for most products.

These inline fillers can be customized to suit any size container or conveyor length. Container sizes from 1.0 ml to 4L can be accommodated. High quality wear free design ensures millions of cycles of carefree operation.

Features

  • Fully automatic filler can be configured to operate 1 nozzle or up to 12 nozzles. Most machines are built with the ability to add nozzles in the future should demand increase.
  • Fully configurable stepper driven nozzle dive / lift system that can be setup to fully dive for foam free (sub-surface) filling or as a partial dive with just a touch on the control panel screen.
  • Micrometer volume adjustments ensure each pump can be precisely dialled in.
  • Large 8″ touch screen display
  • Bottle size memory for recipe calling to minimize changeover times
  • Adjustable guide rails to accommodate bottles of any size
  • No change parts needed for various types of containers
  • Stainless steel and Aluminium construction
  • 316L contact parts
  • Options include data collection, web camera for offsite troubleshooting and flush trough for easy CIP procedures

Specifications

Voltage/Power                                  120 V 1 PH 60 Hz



Controls                                            Microprocessor and touch screen HMI

Max. Bottle Height                            As required

Nozzles                                              Stainless steel or PVC    0.040” and up”

Number of Nozzles                          1 to12 (or more) nozzles

Accuracy                                           +/- 0.5%

Materials                                           Stainless steel and anodized aluminum

Dimensions (Approx).                      L x W x H  115” x 50” x 86”



Optional

Explosion Proof

Drip tray

Neck Guide

Flushing Trough

Guarding and Interlock

Heated tank

Download Specification Sheet
Back to Fillers Page

Metering Pump Liquid Filler (MP90NG-CA)

Fillers

Metering Pump Liquid Filler (MP90NG-CA)



This fast and accurate filler is ideal for foamy products as well as filling into open containers.  The design allows for sub-surface profiled fills.

Overview

The MP90NG-CA is an extremely versatile liquid filler that can easily handle both thin and viscose liquids. The design allows for bottom-up, subsurface fills along with a microprocessor controlled profiled filling rate, making this an ideal choice for filling foamy products. Accuracies of +/- 0.5 ml are typical for most products.

These inline fillers can be customized to suit any size container or conveyor length. Container sizes from 10 ml to 10 L can be accommodated.

Features

  • Fully automatic filler can be configured to operate 1 nozzle or up to 12 nozzles. Most machines are built with the ability to add nozzles should demand increase.
  • Fully configurable stepper driven nozzle dive / lift system that can be setup to fully dive for foam free (sub-surface) filling or as a partial dive with just a touch on the control panel screen.
  • Large 8″ touch screen display
  • Bottle size memory for recipe calling to minimize changeover times
  • Adjustable guide rails to accommodate bottles of any size
  • No change parts needed for various types of containers
  • Stainless steel and Aluminium construction
  • 316L contact parts
  • Options include data collection, web camera for offsite troubleshooting and flush trough for easy CIP procedures

Specifications

Voltage/Power          –                       220 V 1 PH 60 Hz

or 208/480 V 3PH 60Hz

Controls                                             Microprocessor and touch screen HMI

Max. Bottle Height                            As required

Nozzles                                               Stainless steel or PVC

3/8” up to 1 1/4”

Number of Nozzles                           1 to12 (or more) nozzles

Accuracy                                            +/- 1ml

Materials                                           Stainless steel and anodized aluminum

Dimensions (Approx)                       L x W x H     115” x 50” x 86”



Optional

Drip tray

Neck Guide

Web Camera for Remote Troubleshooting

Flushing Trough

Guarding and Interlock

Oversize tank







Download Specification Sheet
Back to Fillers Page

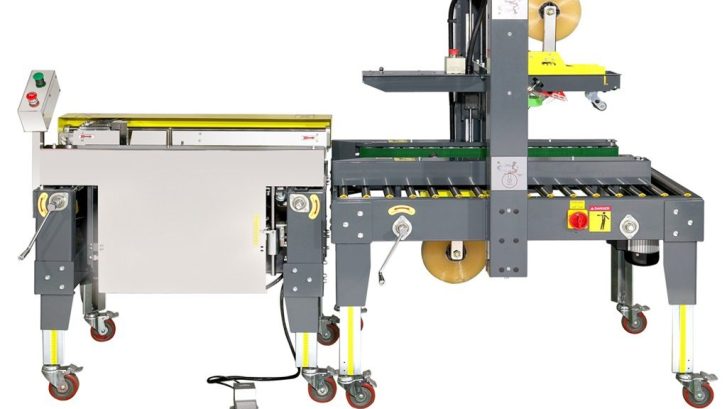

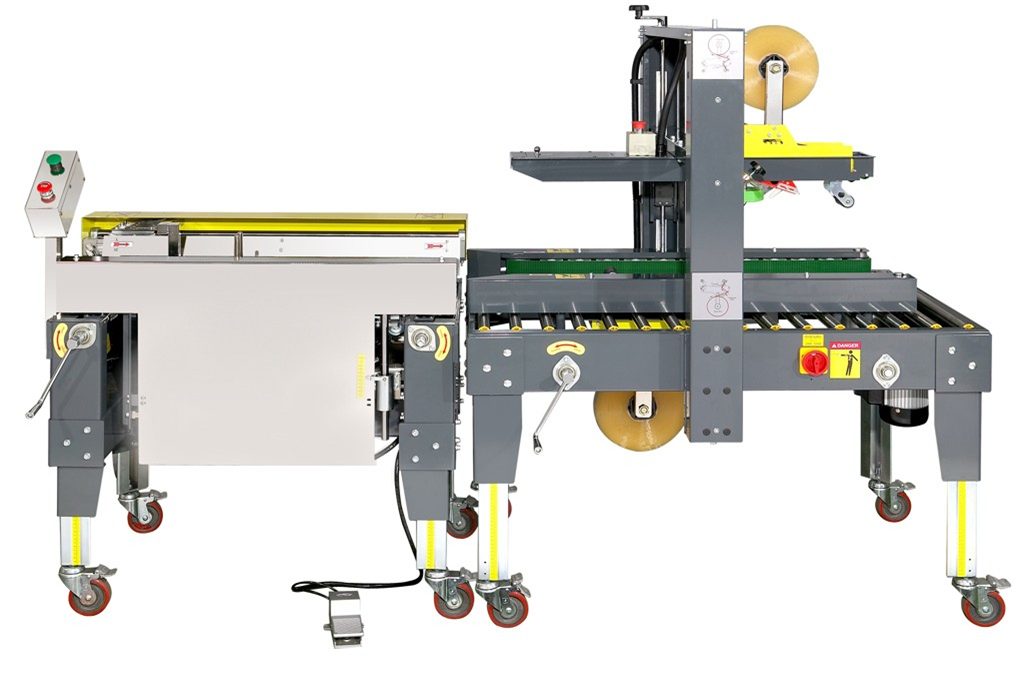

Side Belt Drive Semi-Automatic Erector & Pack Station (SPM-563)

Case Packers

Side Belt Drive Semi-Automatic Erector & Pack Station (SPM-563)

The SPM-563P allows one person to form, pack and seal cartons in one operation. The operator opens the flat carton and places it into the erector.  The machine folds the bottom flaps ready for packing. After packing, the operator presses the footswitch or pushbutton. The machine automatically pushes the carton into a case sealer, saving time and labour costs.

Specifications

Pneumatic operation                           90 PSI
Power                                                    N/A
Folding Size                                          L : 250mm – 650mm   W : 200mm – 400mm   H: 100mm – 500mm
Machine Weight                                   N.W. 182kg / 400 lbs      G.W. 215 kg / 473 lbs
Machine Loading Weight                    20kg / 44 lbs

Download Specification Sheet
Back to Case Packers Page

Duan Kwei Blister Pack Machines

Blister Pack Machines

Blister Pack Machines

Duan Kwei

Speedway Packaging Machinery has partnered with Duan Kwei, Taiwan’s premier Blister Pack Machinery Producer. Through this partnership, we can offer a combination of excellent value and high quality equipment with local support. Like all the products we sell, Duan Kwei’s machines are complete with ESA approval.

Go to Duan Kwei Website
Back to Blister Pack Machines Page
1 2 3
