Custom Labelers

Custom Labelers

As a manufacturer of labelers, we have the capability to make a custom labeler to fit your needs. This may include integrating an applicator head inside a larger machine or providing multiple applicator heads to apply more than one label at a time to the same container. Contact us with your requirement and find out how we can assist you.

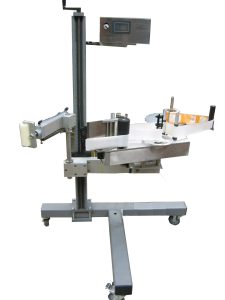

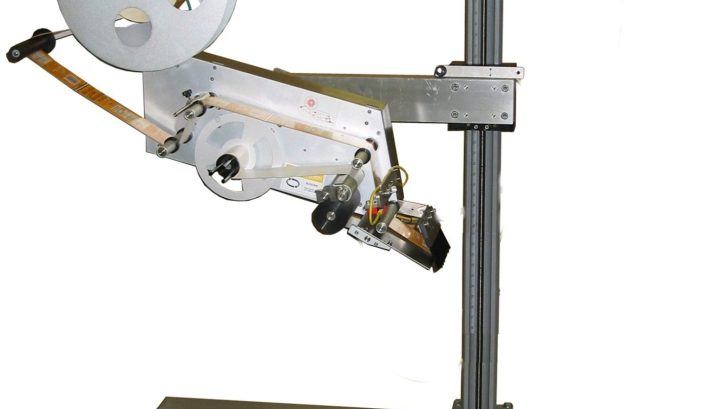

Side and Top Label Stand (LS-S/T150)

Side and Top Label Stand

(LS-S150 and T150)

The Label Stand (LS-series) can be purchased with a head that swivels for top (T) or side(S) labeling over a conveyor or fixed, for top or side labeling.

The LS-S/T150 is constructed of stainless steel and aluminum and comes with swivel castors for ease of mobility and leveling feet for final positioning.

Flexibility

  • The LS-S/T150 allows for easy and quick changeovers for reliable label positioning.
  • The movable stand means this Label Stand can be transferred from one job to another with ease.
  • This simple setup offers a very economical way to apply labels to either the side or top of a package.

Customize

  • The LS-series label stand is made in our factory in Canada. We can customize stand height to suit your needs.
  • With the addition of a corner wrap assembly, this labeller can apply labels on adjacent sides

Accuracy

  • The machine’s integrated missing label detection prevents mislabeling.
  • The Stepper motor drive ensures great accuracy.

Productivity

  • The LS-S/T150  touch screen control provides fast and easy setup.
  • The machine ensures fast labeling speeds with a small footprint.
  • Set the label position with the touch of a button – no need to adjust the sensor.
  • The integrated programmable counter can be programmed to automatically stop the machine when the chosen pre-set level is reached.

 Practicality

  • The LS-S/T150 is easy to integrate into a production line and reposition it wherever it is required.
Application Label Stand

Speed

Standard Upgrade
Max Dispensing Speed 100ft/min (30m) 150 ft/min (45m)
Max Conveyor Speed 65ft/min(20m) 100ft/min(30m) or more

Dimensions and Weight

Standard Optional
Applicator Height 6″ (150mm) 8″ (200mm)
Max Label Length As Required As Required
Approx. Net Weight 175lbs (80kg)
Spool Diameter 14″ (350mm)
Inner Core 3″ (76mm)

Power

Voltage 110  VAC 60 HZ 1 Phase
Power 3 Amps
Controls Panasonic Touch Screen
Drive 2 Phase Stepper Motor

Optional

Coding Inkjet Printer, TTO Printers, Hot Stamp Coder
Sensors Clear Label Sensor
Performance Label Driver Upgrade
Zero-Down-Time dual applicator
Mobility Adjustable Casters
