Custom Labelers

Custom Labelers

As a manufacturer of labelers, we have the capability to make a custom labeler to fit your needs. This may include integrating an applicator head inside a larger machine or providing multiple applicator heads to apply more than one label at a time to the same container. Contact us with your requirement and find out how we can assist you.

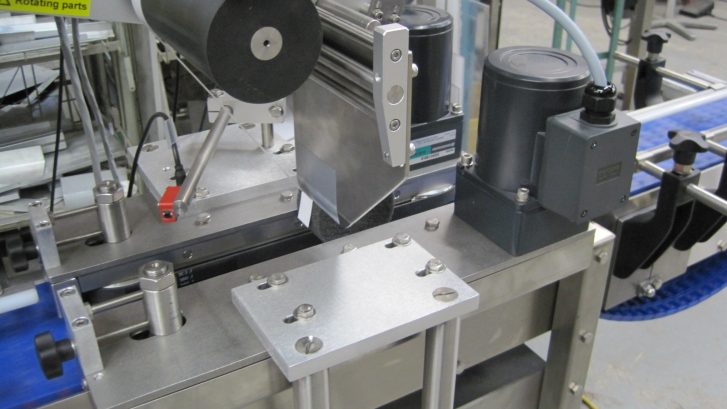

LM-T150 labeling machine

Top Labeler (LM-T150)

Top Labeler (LM-T150)

This Stepper-driven machine is rugged and built to last. This machine is extremely versatile and is designed to place labels on everything from a carton, to a jar lid to an empty pouch. It will provide decades of reliable service, making it an excellent option in terms of cost and performance. The stainless steel construction ensures it will withstand the rigours of daily use and harsh environments. An intuitive touch screen means operation is a breeze.  Simple adjustments with no need for tools, allowing multiple pouch sizes to be run with minimal downtime.  Add an optional printer and print your dynamic information in real time on the label prior to it being applied.

Customize

  • The LM-T150 is made in our factory in Canada. We can customize conveyor length and width with minimal impact on lead time.

Reliability

  • Stainless steel and anodized aluminum construction.

Flexibility

  • The LM-T150 allows for easy and quick changeovers for reliable label positioning.
  • It is very flexible and can accept a wide range of labels
  • Casters can be added to adjustable leveling feet, allowing the machine to be easily repositioned.
  • The LM-T150 is easy to integrate into a production line or to use in a stand-alone operation.

Accuracy

  • The machine’s integrated missing label detection prevents mislabeling.
  • The Stepper motor drive ensures a consistent accuracy.

Productivity

  • The LM-T150’s touch screen control provides fast and easy setup.
  • The machine ensures fast labeling speeds with a small footprint.
  • Set the label position with the touch of a button – no need to adjust the sensor.
  • The integrated programmable counter can be programmed to automatically stop the machine when the chosen pre-set level is reached.
Application Top Labeller
Speed
Max Dispensing Speed 100ft/min (30m)
Max Conveyor Speed 100t/min(30m)



Dimensions and Weight

(Standard)



Applicator Width 6″ (150mm)
Conveyor Width 8″ (150mm) -Other Widths Optional
Conveyor Length 60″ ( 1525mm) -Other Widths Optional
Maximum Pouch Height 9″ (230,mm)
Dimensions (L-W-H)

60″x40″x66″

(1525 x 1015 x 1675mm)

Approx. Net Weight 220lbs (100kg)
Spool Diameter 14″ (350mm)
Inner Core 3″ (76mm)
Power
Voltage 110  VAC 60 HZ 1 Phase
Power 6 Amps
Controls Panasonic Touch Screen
Drive 2 Phase Stepper Motor
Optional
Flexibility Top Labeller change parts to apply various width labels on pouches or boxes
Mobility Adjustable Casters
Efficiency Automatic Feeder
Collection Chute
Performance Label Driver Upgrade (increased applicator Speeds)
Zero-Down-Time dual applicator (never stop to replace labels

Pouch E-Tax Labeler (LM-T150)

Pouch E-Tax Labeler (LM-T150)

Built to last

This Stepper-driven machine is rugged and built to last. It will provide decades of reliable service, making it an excellent option in terms of cost and performance. The stainless steel construction ensures it will withstand the rigours of daily use and harsh environments.

Simple to use

An intuitive touch screen means operation is a breeze.  Simple adjustments with no need for tools, allowing multiple pouch sizes to be run with minimal downtime. With the addition of a few change parts, this machine can also product apply labels to your pouches prior to filling.

Flexibility

  • The LM-T150 –Pouch Etax allows for easy and quick changeovers for reliable label positioning.
  • It is very flexible and can accept a wide range of labels
  • With a few additional change parts, this labeller can be converted to a top labeller for the application of labels onto empty pouches prior to filling.
  • Casters can be added to adjustable leveling feet, allowing the machine to be easily repositioned.
  • The LM-T150 is easy to integrate into a production line or to use in a stand-alone operation.

Accuracy

  • The machine’s integrated missing label detection prevents mislabeling.
  • The Stepper motor drive ensures a consistent accuracy.



Customize

  • The LM-T150-Pouch Etax is made in our factory in Canada. We can customize conveyor length and width with minimal impact on lead time.

Productivity

  • The LM-T150’s touch screen control provides fast and easy setup.
  • The machine ensures fast labeling speeds with a small footprint.
  • Set the label position with the touch of a button – no need to adjust the sensor.
  • The integrated programmable counter can be programmed to automatically stop the machine when the chosen pre-set level is reached.

Reliability

  • Stainless steel and anodized aluminum construction.

Application

Top Labeller with Etax Wipe Roller

Speed

Max Dispensing Speed 100ft/min (30m)
Max Conveyor Speed 100t/min(30m)



Dimensions and Weight

(Standard)

Applicator Width 6″ (150mm)
Conveyor Width 8″ (150mm) -Other Widths Optional
Conveyor Length 60″ ( 1525mm) -Other Widths Optional
Maximum Pouch Height 9″ (230,mm)
Dimensions (L-W-H)

60″x40″x66″

(1525 x 1015 x 1675mm)

Approx. Net Weight 220lbs (100kg)
Spool Diameter 14″ (350mm)
Inner Core 3″ (76mm)

Power

Voltage 110  VAC 60 HZ 1 Phase
Power 6 Amps
Controls Panasonic Touch Screen
Drive 2 Phase Stepper Motor

Optional

Flexibility Top Labeller change parts to apply various width labels on pouches or boxes
Mobility Adjustable Casters
Efficiency Automatic Feeder
Collection Chute
