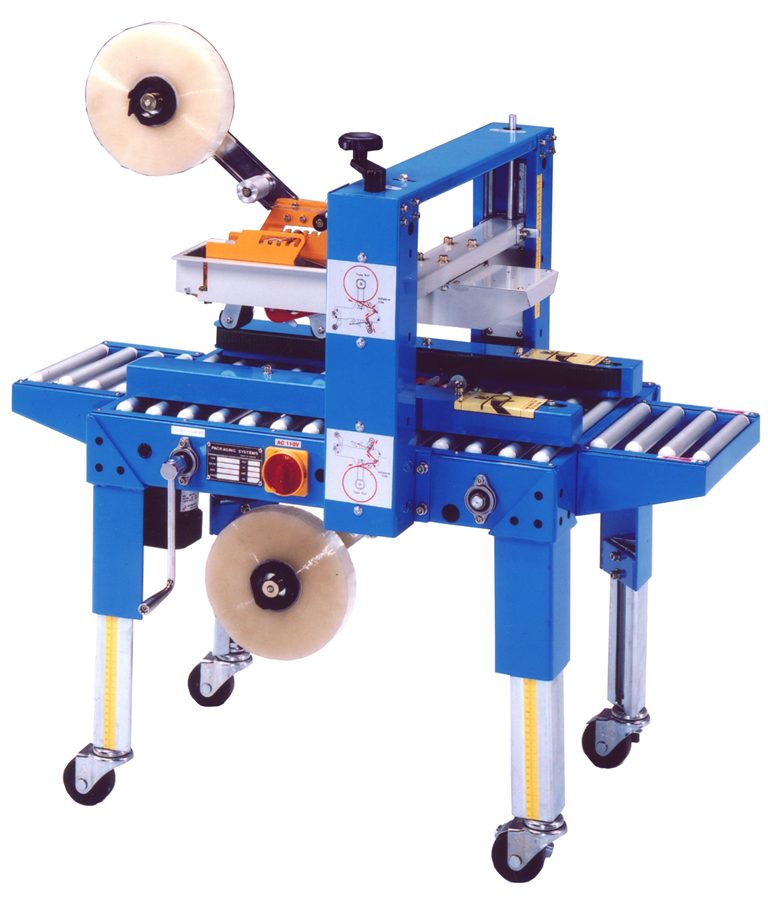

Side Belt Drive Case Sealer
(SPM-562MS)
The SPM-562M uses a new tape head design incorporating a V-shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. Separately driven side drive belts provide high precision, low noise and long belt life. The overhead support is cushioned to adjust to small variations in boxes and prevent jamming. Machines come standard with infeed and outfeed extension roller tables.
Voltage 110 V 1 PH 60 HZ
Power 10 amps Two motors, 370W
Sealing Speed 20 m/min (66’) / min.
Cartons/Hr 1200 cartons per hour
Tape Width 1.5” or 2.0”
Machine Weight 85 kg / 187 lbs
Shipping Weight 135 kg / 297 lbs
Sealing Size L= 150mm W= 100-200mm H = 90-400mm
NOTE: Not suitable to use this machine if the carton’s height exceeds the length.
